Laboratory mixer

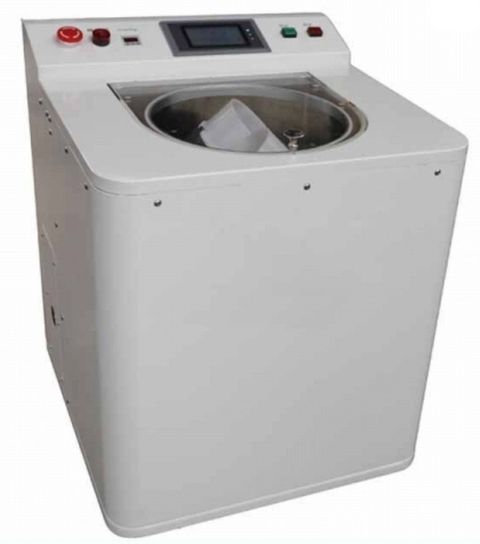

Vacuum Planetary Centrifugal Mixer
upto 1000 Rpm, 1000ml Max, Programmable
Model Number: PCV-2K-LD
Compliance: CE Certified
Warranty: One Year. With lifetime support
Delivery time: 3-5 weeks in Europe
Features
· Mixing under vacuum for deaeration upto 1 Torr
· Two containers for 1000ml mixing or milling samples.
· Minimized contamination (no metal mixing blade)
· Thes peeds of main disk revolution and of container self-rotating are controlled independently upto · · 1200 RPM to provide various impact and shaering force.
· Sample Materials
·Nanopowders, ceramic powders
·Grease
·Slurry
·Paste
Voltage Input
· Single Phase AC 208 - 240V, 50/60 Hz, three phase
Power
· Maximum: 4000 W
Container Capacity
· Maximum volume for 1000mL container: 700mL
· Maximum total weight for 1000mL container: 1.2kg
Mixing & Speed
· Planetary Centrifugal Vacuum Mixing
· Main Platen Rotation (revolution motion)：100 - 1200 RPM (Adjustable)
· Container Rotation (rotation motion)：100-1200RPM (Adjustable whereas the container rotation speed can not be set lower than main platen rotation speed.)
Vacuum Capability
· The chamber is vacuum sealed with built in mechanical pump.
· Pumping Rate: 165 L/min
· Ultimate Vacuum: -95 kPa
Containers and Counter-Weights
·Two standard containers and
counter-weights are included
· Two 1000 mL containers with gas vent, made of high-density Polyethylene
· For small amount of sample mixing, the daptor for samll container is available at extra cost.
· For ball milling , stainless steel liner and adportor is availale at extra cost.
Program
· Store up to 6 programs in memory, as shown in Fig.1
· 3 programmable segments, as shown in Fig.2. For example:
· Maximum running time for each segment is 200 sec. Maximum total running time is 600 sec
· The rotation direction could be either clockwise (mode A) or counter-clockwise (mode B)
Safety
· Safety warning and interlocks are integrated. The unit automatically stops when
· The unit is overloaded with the sample
· The sample is loaded in an unbalanced way
· The top cover is opened
Dimensions
· 655 mm (W) x 950 mm (H) x 805 mm (D)
Net Weight
· 20 kg (44 lbs)
Compliance
· CE Certified
Warranty
· One year limited with lifetime support
· Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Notes
·Always use the mixer on level & stable surface for best performance and maximum safety
· Do not use the mixer in a hazardous atmosphere, or with flammable, explosive, corrosive,
poisonous material! Check the chemical resistance of the container with the different material before loading the sample!!!
· Do not overload the mixer! Stop the mixing operation immediately if abnormal sound/vibration are observed
· Use a digital balance to make sure the sample loading is balanced before mixing
· Double check if the containers are mounted correctly and securely before mixing
· Do not open the cover lid until the rotation has completely stopped! Do not retrieve the containers and/or put hand close to mixing fixture while the rotation has not completely stopped!
· Only use the included containers for the mixing operation! Double check to make sure there is no foreign object in the mixer before mixing
